Protect your LPG Conversion

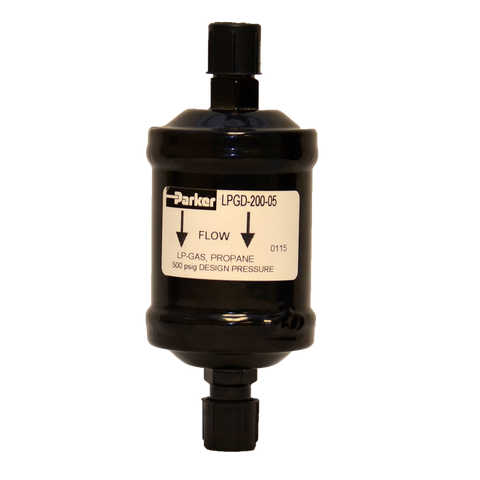

Propane powered vehicles and equipment rely on Parker’s LPGD-201-05 series LPG filters to prevent contaminates that have settled in liquid propane tanks and fuel lines from reaching critical engine components.

LPG Filter Product Specifications

• Part Number: LPGD-201-05
• Port Configuration: ½” SAE Flare (3/4-16 UNF-2A) Ports
• Maximum Operating Pressure: 500 PSIG
• Minimum Burst Pressure: 2500 PSIG
• Maximum Operating Temperature: 250°F
• Maximum Differential at Replacement: 10 PSIG
• Flow Direction: Out-to-In
• Rated Flow: 4 GPM, 3.6 PSID / 10 GPM, 8.9 PSID
• Absolute Efficiency Rating: 5uM
• Mounting: Any
• Assembly Weight: Approx. 1.4 lbs.
• Materials: Body: Painted Carbon Steel, Copper, Plated-Nickel, Carbon Steel

Element: Glass, Polyester, Glass filled Nylon, Epoxy, Fluorocarbon
